Description
Laboratory hydrocyclone has been used for pulp granulation of minerals, polymers, andother solid materials in
laboratories in terms of their dimension and density.
In this system, all important parts of a standard hydro cycloneis designed and appropriateness of its dimension is observed. Obtained material from hydrocyclone overflow will be dewatered and collected after passing through a sieve. Hydrosyclone body is made of resistant stainless alloy and polyurethane, so that all parts of the system makes up a complete unit.

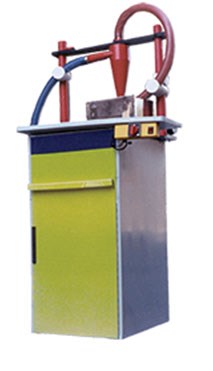

Laboratory HYDRO SYCLONE
Model : TA.C - 40H
şartname başlığı
avantajları
|
TECHNICAL DATA / TA.C - 40 H
|
|
|
Electric pump voltage
|
220 V 50 – 60 Hz
|
|
|
Power
|
1100 W
|
|
|
Pipe / connectors
|
Poly urethane / stainless steel
|
|
|
Sump tank capacity
|
60 liters
|
|
|
No. of cyclones
|
2 size cyclone
|
|
|
Pressure gauge
|
0 – 10 ATM
|
|
|
Sieve screen
|
4 size
|
|
|
Waste sink
|
Anti acid – Anti base
|
|
|
Fluid control unit
|
Electro mechanical
|
|
|
Approx weight
|
85 Kg
|
|
|
Approx dimension ( mm )
|
800 W × 950 L × 1500 H
|
