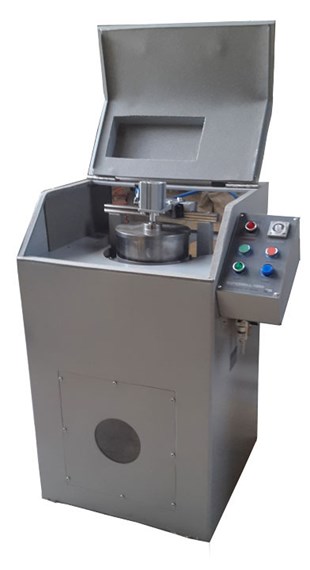

SUPER MILL - 1000

TECHNICAL DATA : SUPER MILL 1000

3 phas - 380 V , 50 Hz

ELECTRIC MOTOR

2200 W / 3 Hp

POWER

1500 Hz normally

Vibrating frequency

Automatic / pneumatic

Clamps

Brittle – Hard Brittle – Semi Hard – Semi Brittle

Feed material

< 10 mm

Feed size

220 mesh optimum

Product size

500 gr/Batch

Optimum capacity/ Batch

1 min ( 60 s )

Optimum milling time

Chromium steel / Tungsten carbide / agate / high alumina

Milling CUP ( Optional )

Electric / Electronic

Control board

Digital display: 0-30 min

Time Display / control
