Laboratory Jaw Crusher

Laboratory Jaw Crusher

Gol

TA.R - 125 CE



Laboratory Jaw Crusher

Model : TA.R - 125 CE

durum: Stokta var
miktar








dscp başlığı

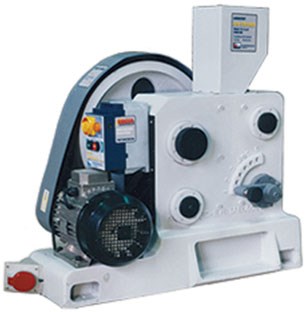

Laboratory Jaw Crusher     Model:  TA.R - 125 CE

Laboratory Jaw Crusher

Model:  TA.R - 125 CE






 This device is for primary crushing minerals and laboratory samples of rock, ceramic, glass and other similar materials



TA.R 125 CE as a jaw crusher has the most advanced designed body, technical mechanisms and new metal techniques principals. Outlet adjustment mechanism of jaws, integrated stainless alloy body, anti-wear alloy jaws made of manganese steel and chromium steel, and powerful, strong and compact European electromotor are some of its features. Aperture dimension of crusher is 80×100 mm and 90×125 mm that is changeable in certain cases.









 Laboratory Jaw Crusher    Model:  TA.R - 125

Laboratory Jaw Crusher

   Model:  TA.R - 125



şartname başlığı
avantajları



TECHNICAL DATA  TA.R 125 CE TA.R 125
Electric motor 4kw / 380 v/50& 60 Hz 3kw / 380 v/50& 60 Hz

Optimum Capacity 200 Kg / h 150 Kg / h
Max. Capacity 350 Kg / h 250 Kg / h

Max. Feed size < 100 mm < 80 mm

Product size ( mm ) 2 – 40 Adjustable 2 – 30 Adjustable

Aperture dimension 90 × 125 mm 90 × 100 mm

Jaw material MN – Steel MN – steel

Main frame Cast Anti oxidant Alloy Cast Anti oxidant Alloy

Feeder Stainless Steel Stainless Steel

Produce collector Box Stainless Steel Stainless Steel

Cleaner Brush Steel Steel

Control panel Electric / Electronic Electric

Dust collector Optional Optional
Chromium steel / tungsten carbide jaw Optional Optional

Approx. dimensions 50 W × 90 L × 75H 40 W × 90 L × 70 H

Approx. weight 200 Kg 160 Kg
