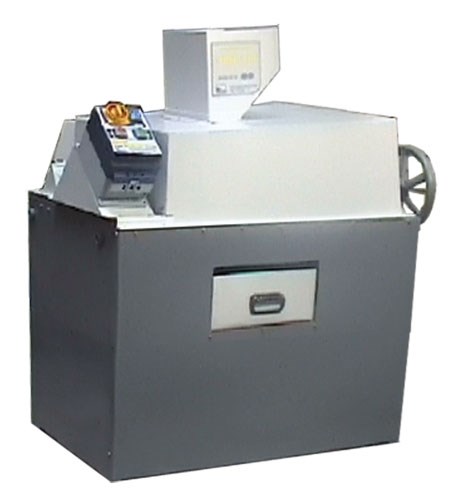

Model: TEROL - 250
Silindirli Kırıcı
Model : TEROL - 250
Different models are designed and made of TEROL series. This device works based on the rotation of two cylinders of anti-wear alloy in the opposite directions to each other, while there is a little difference in rotation rate of each cylinder.
In TEROL series, fixed cylinder attaches to a very powerful spring system that, in the case of entering unusual pieces, cause rollers to go backward and the object be disposed. The distance between crusher aperture of cylinders is adjustable manually or by electrical system.
Model : TEROL - 300
Model
Terol 300
Terol 250
Terol 200
Discription
Electric Motor
2.2 KW / 380 V
1.5 KW / 380 V
1.1 KW / 380 V
Germany
ROLL Dia. L (mm)
300 × 350
250 × 300
200 × 250
Manganese/ chromium steel Steel shell/ hardened steel
ROLL Surface
Smooth / Toothed
Smooth
Max. feed Size
35mm
20mm
10mm
Product Size
Adjustable < 3 mm
Adjustable < 2 mm
Adjustable < 1 mm
Frame / bas
Steel
Control Board
Electric/Electronic
Electric
Over Load system
yes
Electro mechanical
Roll Shell / Brush
Manganese Steel /Steel
Dimensions ( Cm )
800 W × 950 L × 1100 H
700 W × 900 L × 1000 H
600 W × 800 L × 900 H
Weight
300 kg
220 kg
180 kg
