Model: ROTOPOL- 3R
Automatic Laboratory Grinding & Polishing machine

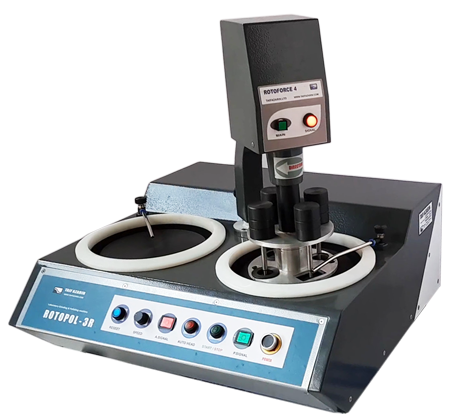

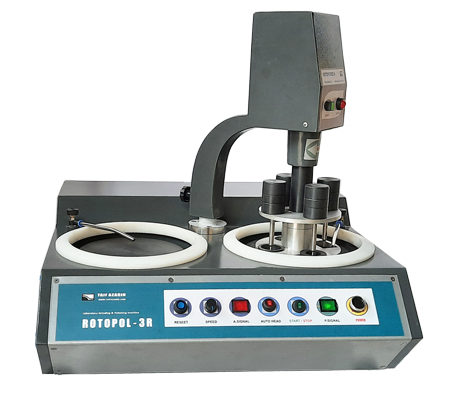

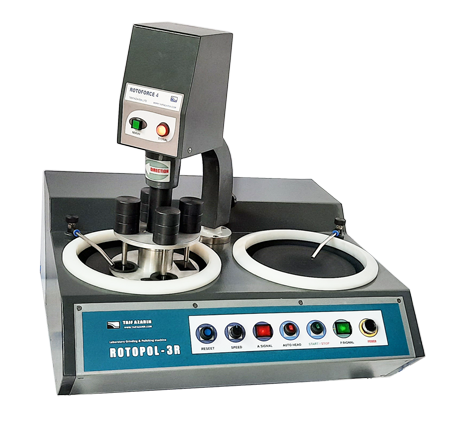

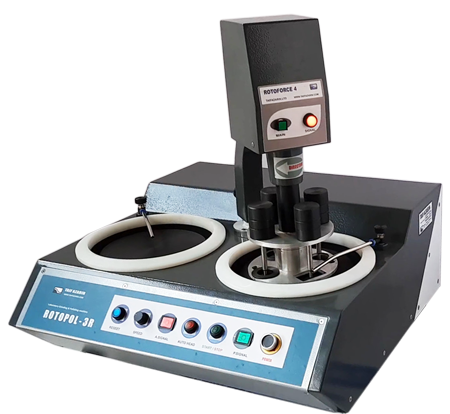

Automatic Laboratory Grinding & Polishing machine Model : ROTOPOL- 3R
Description

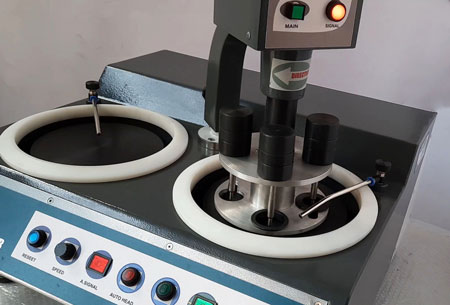

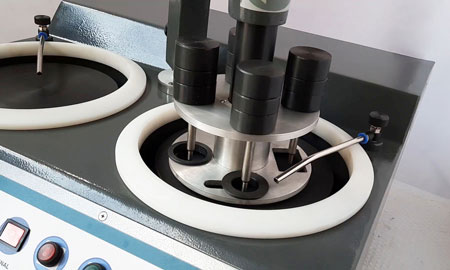

Laboratory grinding and polishing machine, model ROTOPOL-3R seems to be similar to ROTOPOL-3. The only differences are as below: ROTOPOL-3R is equipped with automatic holder for holding the polish and thin polish samples and typical thin sections.
Rotation rate of automatic sample holder in this system is adjustable and also the rotation rate of polishing discs can be set between the range of 150-600 RPM.
Automatic Laboratory Grinding & Polishing machine Model: ROTOPOL- 3R
THECHNICAL DATA
ROTOPOL – 4R
ROTOPOL - 3R
ROTOPOL – 3S
Main Electric Motor
750 W / 220 V servo motor.
750 W / 24 V DC motor.
550 W / 24 V DC motor.
Automatic Sample Holder Motor
24 v - 80 w DC Gear Motor.
24 v - 60 w DC Gear Motor.
_________
Grinding / polishing axis
2 axis
Polishing / Grinding disk Dia.
230 mm
Sample Holder Capacity
4 Polished section , 3 Thin section
3 Polished section , 3 Thin section
Disk Speed
50 - 1200 RPM
150 - 1000 RPM
Speed control accuracy
± 3 RPM
± 10
± 15 RPM
Time display control
Digital 0 – 60 min.
Mechanical 0 – 60 min.
Main frame
Stainless Steel
Anti-oxidant Alloy
Partly Stainless Steel
Suspension Lubricant Feeder
2 Liter Stainless Steel
2 Liter Pu
Polishing Disk
Super composite Disk / Pu Disk
Pu Disk
Grinding Disk
Super composite Disk / Cast Iron Disk
Cast Iron Disk
Approx. dimension ( Cm )
85 L×70 w×65 H
85 L×70 w×55 H
80 L×65 w×45 H
Approx. Wight
95 Kg
85 Kg
65 Kg
