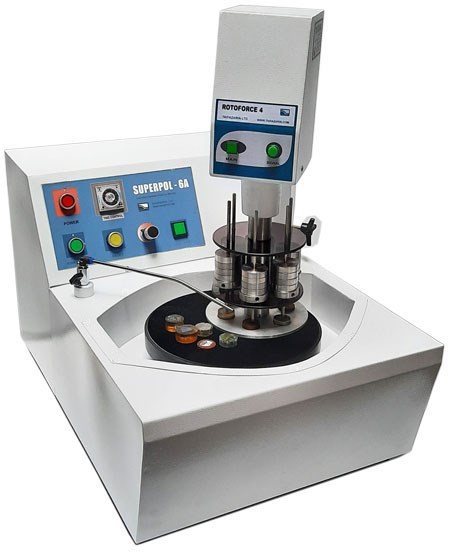

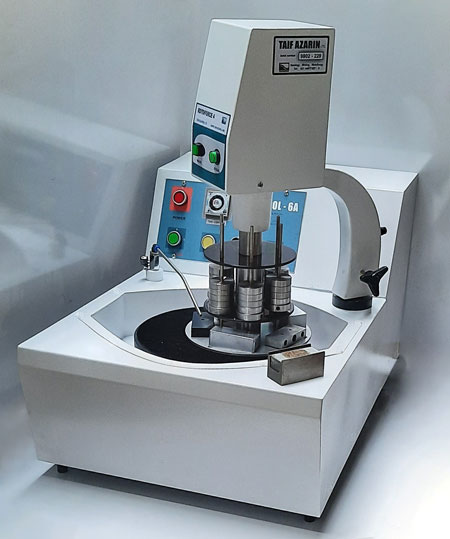

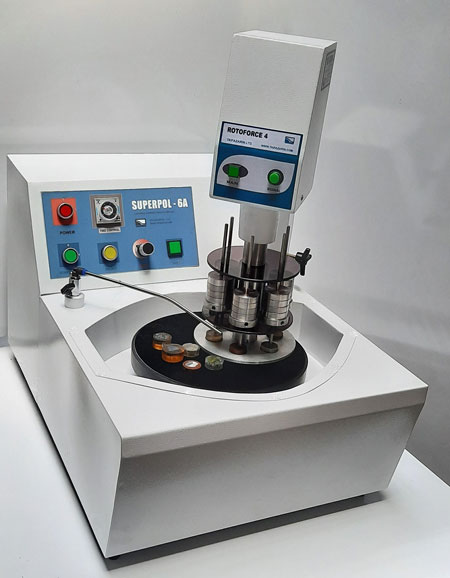

Model : SUPERPOL- 6A
AUTOMATIC POLISHING SYSTEM
Description
Polishing Machine SUPERPUL series are capable of grinding and polishing the laboratory, metallography, mineralogy, mining and ceramic samples. in this system, grinding is performed by smooth and groove anti-wear alloy discs, and polishing is done by diamond spray or diamond paste, aluminum oxide or chromium oxide.
THECHNICAL DATA
SUPERPOL – 6DT
SUPERPOL- 6D
SUPERPOL – 6A
Main Electric Motor
1100 W - 220 V / servo motor.
750 W - 220 V / servo motor.
Automatic Sample Holder Motor
24 v - 100 w DC Gear Motor.
24 v - 80 w DC Gear Motor.
24 v - 50 w DC Gear Motor.
Grinding / polishing axis
One axis
Polishing / Grinding disk Dia.
320 mm
300 mm
Sample Holder Capacity
6 Polished section , 4 Thin section
5 Polished section , 3 Thin section
5 Polished section
Disk Speed
50 - 1200 RPM
100 - 1000 RPM
150 - 1000 RPM
Speed control accuracy
± 2 RPM
± 5 RPM
Time display control
Digital 0 – 99 min.
Mechanical 0 – 60 min.
Main frame
Stainless Steel
Suspension Lubricant Feeder
2 Liter Stainless Steel
2 Liter Pu.
1.5 Liter Pu.
Polishing Disk
Super composite Disk / Pu Disk
Pu Disk
Grinding Disk
Super composite Disk / Cast Iron Disk
Cast Iron Disk
Approx. dimension ( Cm )
70 L×55 w×50 H
70 L×50 w×50 H
70 L×50 w×45 H
Approx. Wight
90 Kg
80 Kg
75 Kg
