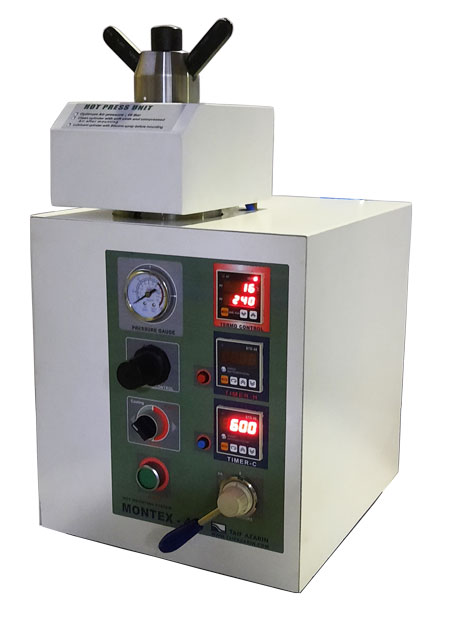

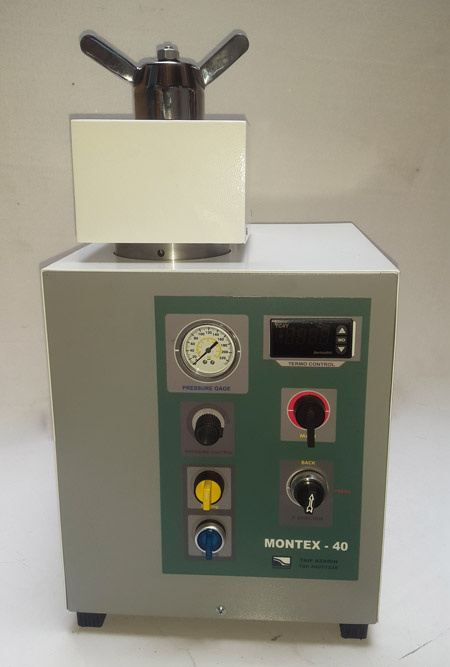

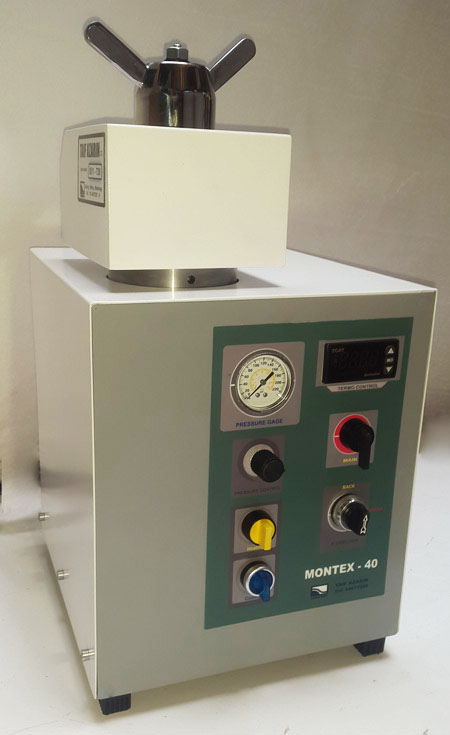

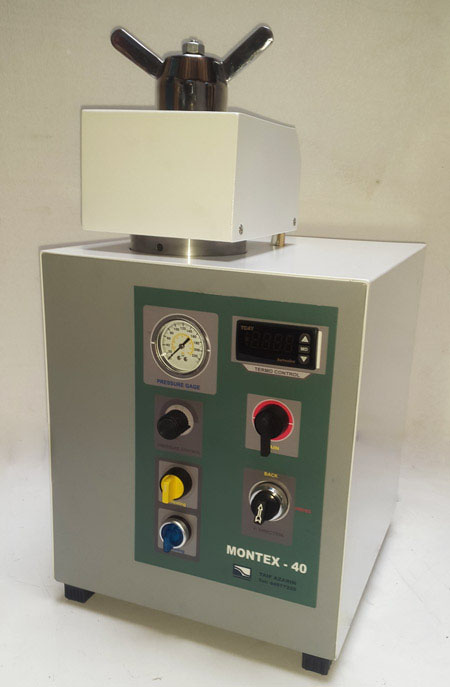

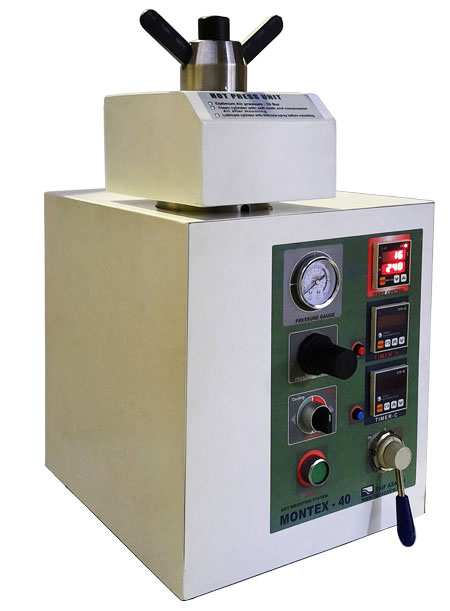

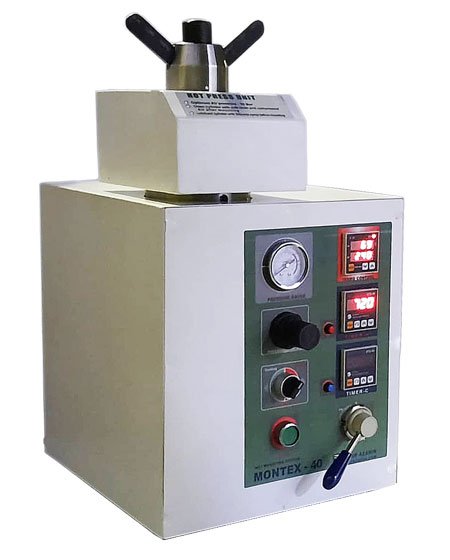

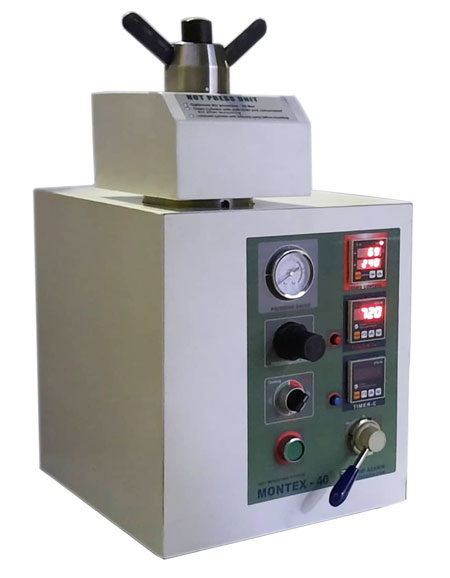

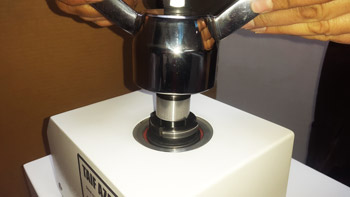

MONTEX – 40 Hot mounting system Model : Montex - 40
Description
Molding the materials, alloys, metals, rocks, minerals and ceramics are done in two methods: cooling method by using the liquid resins, and heating method by using the solid resins which is done under pressure and heating conditions. By MONTEX-40 we can prepare high quality polishing samples.
Metallographic Mounting Press Model : Montex - 40
Generally these samples have 30 mm diameter and preparing the samples with 25 and 40 mm diameter are optional. The system has a pneumatic compression system and the amount of pressure on the system is shown by an analog gauge
Hot mounting system Model : Montex - 40
TECHNICAL DATA / MONTEX – 40
For hot mounting of laboratory specimens
Mounting material: back alit and polystyrene Powder / Granule
Power: pneumatic / electric
Sample Dia.( mm ): 25 , 30 , 40 mm Dia.
Heating / cooling system: automatic

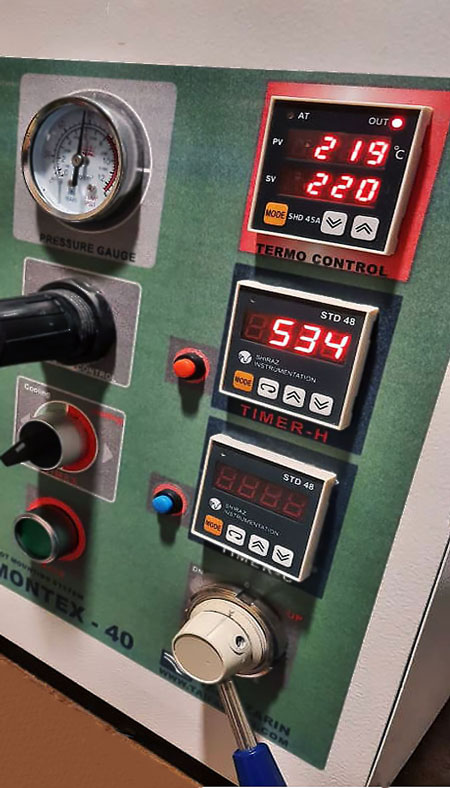

Temperature display: digital
Pressure display: mechanical / gauge
Power supply: 220- 380 V , 50 - 60 Hz , 1100 w
Approx. dimension ( mm ): 350 L × 320 W × 500 H
Approx. weight: 80 Kg
