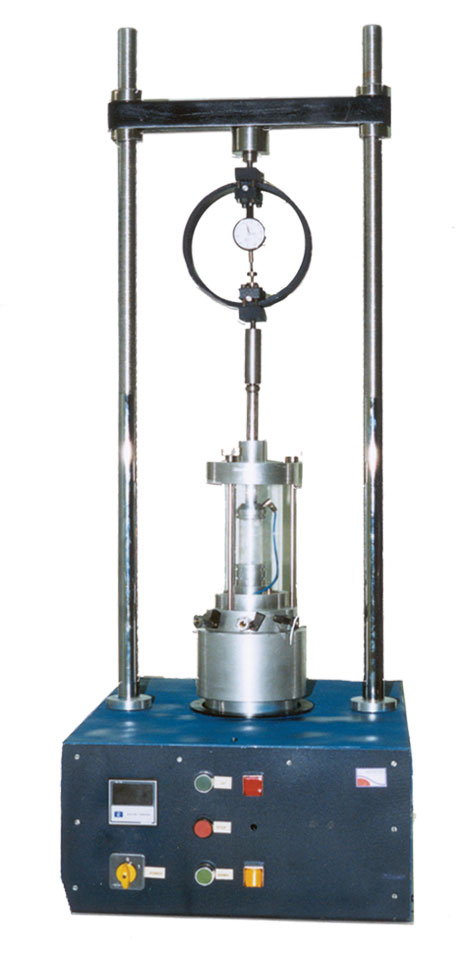

 TRIAXIAL SOIL TEST Model : TRICELL -100

TRIAXIAL SOIL TEST
Model : TRICELL -100




Description


Triaxial soil test machine is equipped with an electronic steering system, and the momentum of movable plate is shown digitally by a LCD.

An electronic unit controls the speed of movable plate by the operator. Complete cell of triaxial test is made of stainless alloy and contains a transparent protective cylinder which is made of Plexiglas. Range of plate movement is 0 to 100 mm.





Compare Technical data
Technical Data
     TECHNICAL DATA / TRICELL - 100
ELECTRIC MOTOR Stepper motor
Motor Accuracy 180 Plus / 1 Rotation
Control Board Electronic
Test Cylinder Plexiglas - Glass
Main Frame / Rods Stain Less Steel
Transmission Sensors 5 micron Accuracy
Pressure gauge 0.01 mm div
Plate Speed 0.005 – 3 mm / min
Air Compressor 50 Liter / 220 v – 50 Hz EC
Control Valves Ball Joint – Stainless Steel
Upper / Lower Plates Special Aluminum Alloy
Plates Dia. 133 mm
Plate Transmission Limit 100 mm
Approx. Dimensions( mm ) 600 L × 500 W × 1350 H
Total weight 180 Kg
