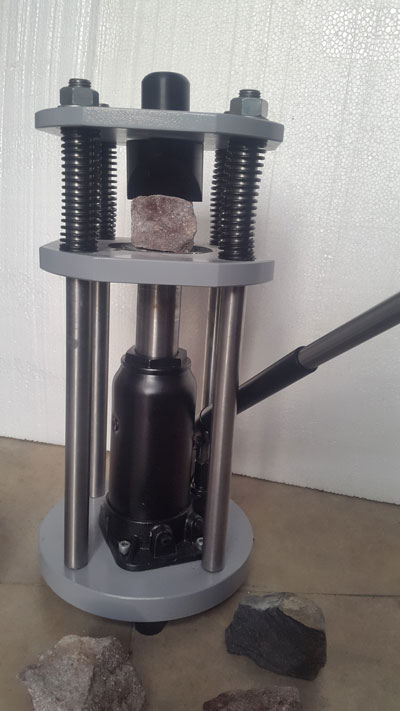

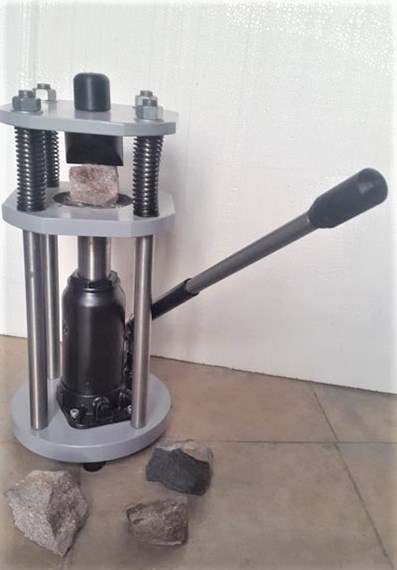

POINT LOAD TEST

POINT LOAD TEST

Model: POINTEST – 2

POINT LOAD TEST

Model: POINTEST – 2

Status: in stock
Quantity








Description


Description

This device is to measure the point compressive strength of rocks, concrete and other similar materials and contains a hydraulic pump, high pressure cylinder and hydraulic pressure measurement gauges.


















POINT LOAD TEST




POINT LOAD TEST - POINTEST –5
POINT LOAD TEST - POINTEST –5
POINT LOAD TEST - POINTEST –5
POINT LOAD TEST - POINTEST –5
POINT LOAD TEST - POINTEST –5
Compare Technical data
more images



Technical Data
 TECHNICAL DATA / Pointest – 2 , Pointest – 3 , Pointest – 5
Standard Test ASTM D5731 , ISRM
Pressure Limit 30 – 250 Kg / Cm2
Diametric Test Rate L / D >1
Axial Test Rate 1 / 3 < L / W < 1
Block Test Rate 1 / 3 < D / W < 1
Test Time 10 – 60 S
Conic Head Specification 60°c
Head Angle 5 mm = R5
Curve Radius 180°
Pressure heads Cemented Steel
Pressure Head hardness 58 – 65 RW
Measuring Accuracy % - +5
Measuring Read out 5 Kg. f / Cm2
Gauge scale 5 Kg / f / Cm2 , 5 – 30 TON
Pressure Rods 4 Small Rods , 4 High Rods
Approx. weight POINTEST – 2 20 Kg
POINTEST – 5 25 Kg
POINTEST – 3 25 Kg
