Model: SUPERPOL- 6DT
Model : SUPERPOL- 6DT
Description:

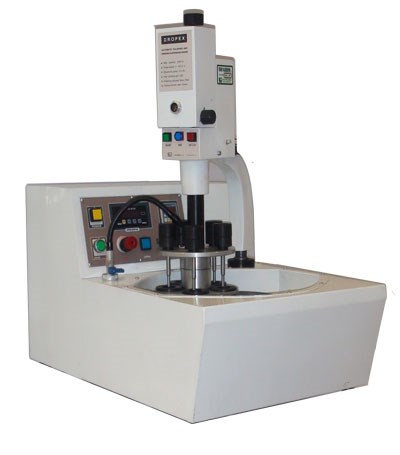

AUTOMATIC POLISHING SYSTEM Model : SUPERPOL- 6DT

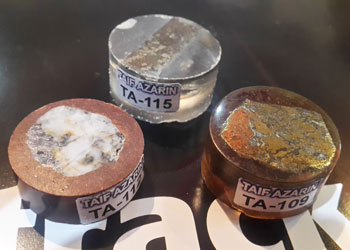

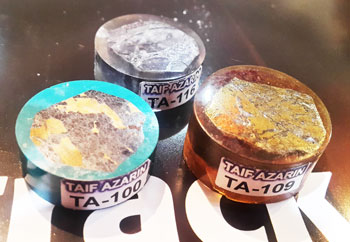

polished section
SAMPLE HOLDER FOR POLISHING SYSTEM
IN ORDER TO PREPRINGTHINSECTHION AND PETROGRAPHY
THECHNICAL DATA
SUPERPOL – 6DT
SUPERPOL- 6D
SUPERPOL – 6A
Main Electric Motor
1100 W - 220 V / servo motor.
750 W - 220 V / servo motor.
Automatic Sample Holder Motor
24 v - 100 w DC Gear Motor.
24 v - 80 w DC Gear Motor.
24 v - 50 w DC Gear Motor.
Grinding / polishing axis
One axis
Polishing / Grinding disk Dia.
320 mm
300 mm
Sample Holder Capacity
6 Polished section , 4 Thin section
5 Polished section , 3 Thin section
5 Polished section
Disk Speed
50 - 1200 RPM
100 - 1000 RPM
150 - 1000 RPM
Speed control accuracy
± 2 RPM
± 5 RPM
Time display control
Digital 0 – 99 min.
Mechanical 0 – 60 min.
Main frame
Stainless Steel
Suspension Lubricant Feeder
2 Liter Stainless Steel
2 Liter Pu.
1.5 Liter Pu.
Polishing Disk
Super composite Disk / Pu Disk
Pu Disk
Grinding Disk
Super composite Disk / Cast Iron Disk
Cast Iron Disk
Approx. dimension ( Cm )
70 L×55 w×50 H
70 L×50 w×50 H
70 L×50 w×45 H
Approx. Wight
90 Kg
80 Kg
75 Kg
