Model: LABOVAC - 1 & LABOVAC - 2
Laboratory VACUUM FUNNEL / FILTER
Model : LABOVAC - 1 LABOVAC - 2
Description:

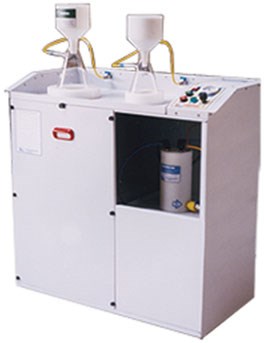

Laboratory system, LABOV AC, is designed for dewatering of pulps, extracts and other similar solutions. The system contains one or two vacuum Erlenmeyer Flask , a mesh funnel with filter paper, and a vacuum pump which in total make up a complete system.
Separation of liquid and solid is done by negative pressure obtained from vacuum and at the end of the process the liquid, which passed through the filter, will be collected in the vacuum Erlenmeyer Flask and the solid will remain on the filter at the bottom of the funnel. Vacuum pressure in this system is adjustable.
TECHNICAL DATA / LABOVAC – 1 LABOVAC – 2
Vacuum Erlenmeyer
1 Liter
1,2 Liter
No. of vacuum lines
1 Line
2 Line
Vacuum funnel
Polymer
Polymer – Ceramic
Vacuum funnel volume
500 cc
500 cc , 1000 cc
Filter cloth Dia.
125 mm
Vacuum gauge
0 ~ -1000 mbar
Connectors / fluid lines valves
Stainless Steel
Vacuum pressure control box
2 Liter
Control panel
ELECTRIC /ELECTRONIC
ELECTRIC / ELCTRONIC
Test time ( average )
5 min
5 , 8 min
Approx. weight
28 Kg
45 Kg
Approx. dimensions( cm )
40 L × 25 W × 50 H
80 L × 60 W × 110 H
