PRESSURE FILTERA-TAF150

PRESSURE FILTERA-TAF150

Model : TAF -150

Laboratory PRESSURE FILTER

Model : TAF -150

Status: in stock
Quantity








Description --

 PRESSURE FILTER

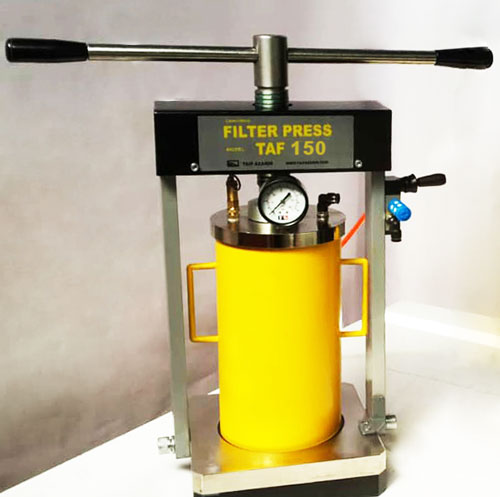

Laboratory PRESSURE FILTER
Model : TAF -150



Laboratory PRESSURE FILTER
Model : TAF -150

Description

This system is designed in accordance with filtration standards in laboratory scale. Filtration container is made of stainless steel and can tolerate high pressure. Also it can filter up to 8 liters pulp in each test.



Laboratory PRESSURE FILTER
Model : TAF -150








Laboratory PRESSURE FILTER
Model : TAF -150

Pressure applied on cylinder is shown by pressure gauge. During the filtration, water and other filtered liquids exclude from the container, and solid particles will remain on the filter fabric as a cake which can extract them after exiting the container.


Compare Technical data
Technical Data

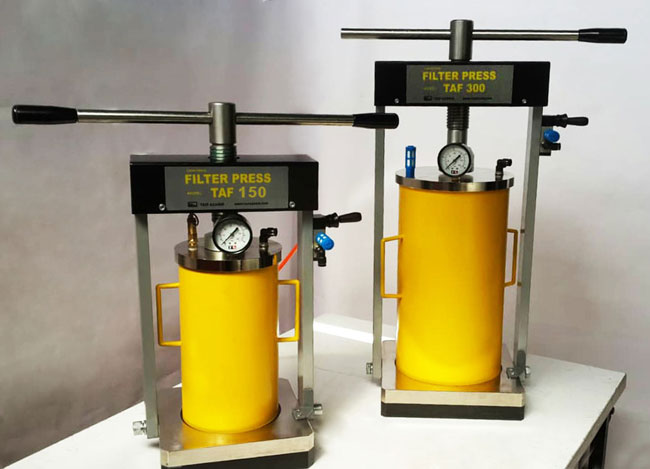

TECHNICAL DATA TAF - 150 TAF – 200 TAF – 250  TAF – 300
Filtration volume / Batch 6 Liters 12 Liters 20 Liters  30 Liters
Cylinder material Stainless steel Stainless steel Stainless steel  Stainless steel
Filtration area base ( Cm 2 ) 200 350 450  600
Filtration frame Stainless steel Stainless steel Stainless steel  Stainless steel
Valves / safety valves Pneumatic Pneumatic Pneumatic  Pneumatic
Coupling rods / cups Stainless steel Stainless steel Stainless steel  Stainless steel
Pressure gauge 0 - 10 Bar
0 - 10 Bar 0 - 12 Bar  0 - 12 Bar
Pressure tested 14  ATM 14  ATM 18  ATM  20  ATM
Filtration pods Anti Acid Anti Acid Anti Acid  Anti Acid
Filtration pods pressure tested on frame 10  ATM 10  ATM 12  ATM  12  ATM
   Silent output Yes  Yes  Yes  Yes
Filtering cloth porosity 8– 20 Micron 8– 20 Micron 8– 20 Micron  8– 20 Micron
Filtering cloth temperature tested 70°c 70°c 70°c  70°c
Hydraulic coupling for Cylinder Optional Optional  Optional Optional
Approx. weight without cabinet(Kg) 30 Kg 45 Kg 60 Kg   85 Kg
