Laboratory Hydrocyclon has been used for pulp granulation of minerals, polymers, and other solid materials in
laboratories in terms of their dimension and density.
In this system, all important parts of a standard hydro cycloneis designed and appropriateness of its dimension is observed. Obtained material from Hydrocyclon overflow will be dewatered and collected after passing through a sieve. Hydrocyclon body is made of resistant stainless alloy and polyurethane, so that all parts of the system makes up a complete unit.

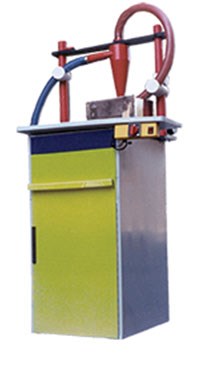

Laboratory Hydrocyclon
Model : TA.C - 40H
Compare Technical data
Technical Data
|
TECHNICAL DATA / TA.C - 40 H
|
|
|
Electric pump voltage
|
220 V 50 – 60 Hz
|
|
|
Power
|
1100 W
|
|
|
Pipe / connectors
|
Poly urethane / stainless steel
|
|
|
Sump tank capacity
|
60 liters
|
|
|
No. of cyclones
|
2 size cyclone
|
|
|
Pressure gauge
|
0 – 10 ATM
|
|
|
Sieve screen
|
4 size
|
|
|
Waste sink
|
Anti acid – Anti base
|
|
|
Fluid control unit
|
Electro mechanical
|
|
|
Approx weight
|
85 Kg
|
|
|
Approx dimension ( mm )
|
800 W × 950 L × 1500 H
|
