Model: DIGICEL - 3000

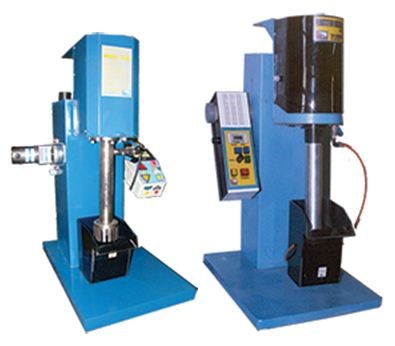

Laboratory FLOTATION MACHINE Model: DIGICEL - 3000
Description
DIGICEL-3000 is a laboratory model of real flotation machine. The system has been built incompliance with the scale towards industrial cells.
This device works based on known mechanisms of rotor- stator in which complete suspension of solid particles in solution are established. So that air bubbles in resulting suspension will be dispersed between solid particles and will be involved with them. In these situations, flotation process can be conducted for mixture types of solid with different specific weights, such as minerals, coal and pulp. The system has an automatic lifting system and an air blower shaft.
Laboratory FLOTATION MACHINE
Model : DIGICEL - 3000D
Laboratory FLOTATION MACHINE Model : DIGICEL - 3000
TECHNICAL DATA: DIGICEL – 3000
220 v / servomotor
Electric motor ( main)
550 w / 750 w
Power
500 – 3000 Rpm
Rotor speed ( adjustable )
0 – 10 L / min
Air / GAS flow
Digital display
Rotor speed display
Metal base sensor
Speed sensor
Electro automatic
Shaft lifting system
24 W , 30 W gear motor ( DC )
Shaft lifting motor
Stainless steel
Rotor / Diffuser
Stainless steel / pu
Valves / connectors / fluid line
Stainless steel / Plexiglas
Floatation cells
Special Alloy – anti oxidant
base / frame
+5 ~ +50°c
Operating temperature
Acid / Base
Suspension / pulp feature
650 L × 415 W × 750 H
Approx. dimension( mm )
