Laboratory Mortar mill

Model: MICROCLASS-200

LABORATORY Mortar mill

Model:  MICROCLASS-200

Status: in stock
Quantity








Description

 mortar mill

LABORATORY Mortar mill

Model:  MICROCLASS-200



 mortarmill

LABORATORY Mortar mill

Model:  MICROCLASS-200

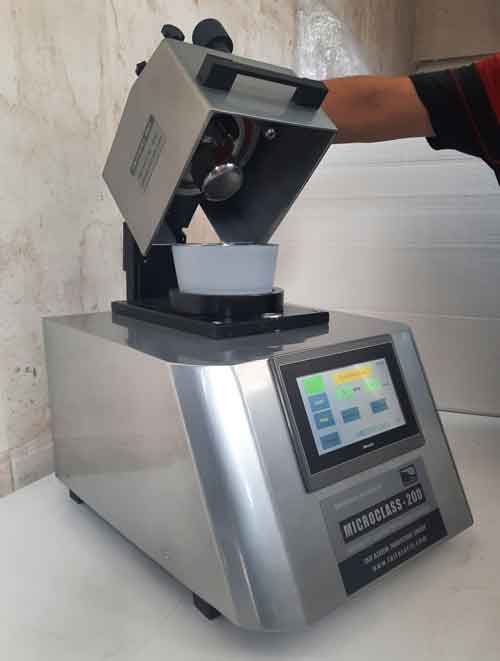

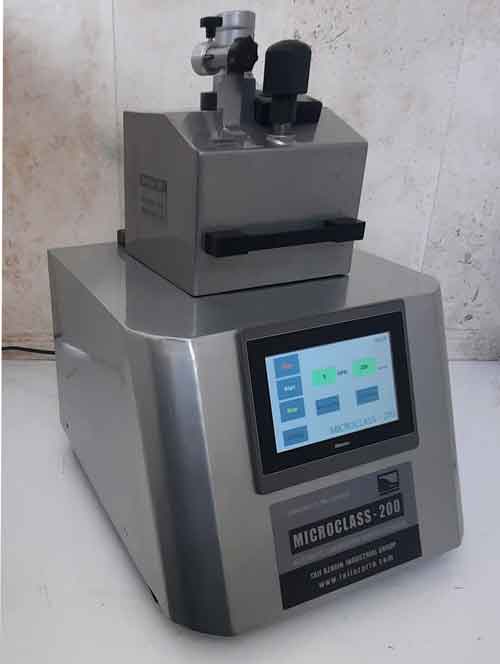

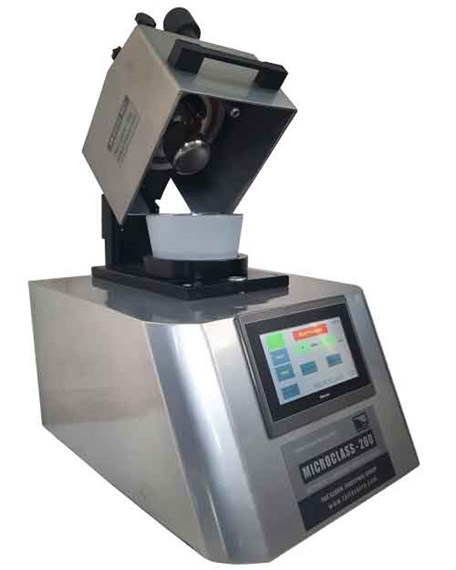

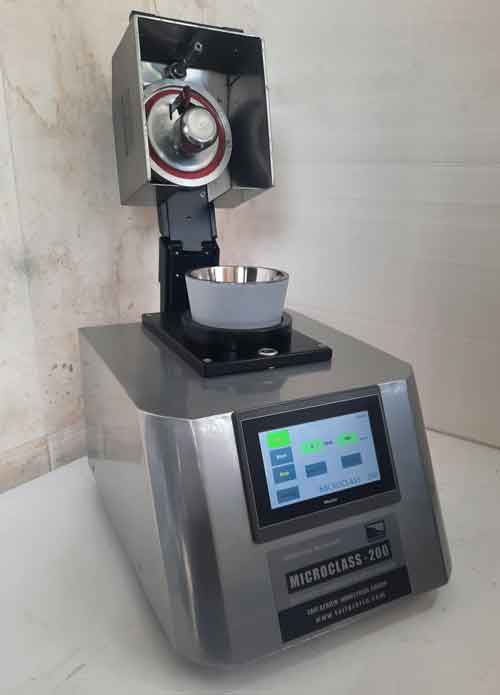

     Laboratory mortar mill model MICROCLASS-200 designed to produce and prepare analytical homogenized samples.

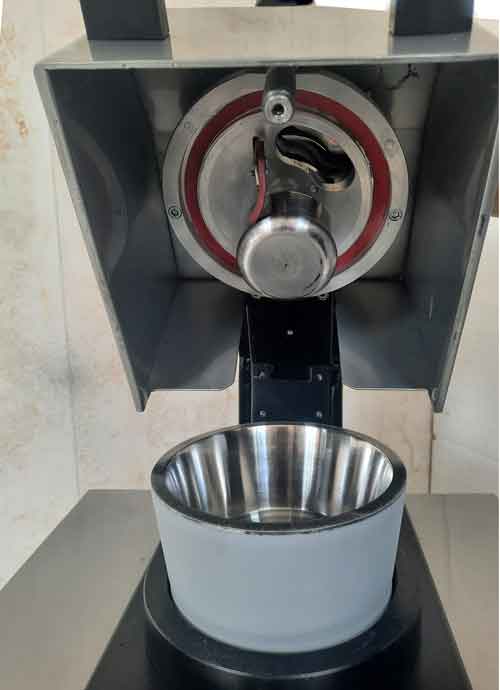

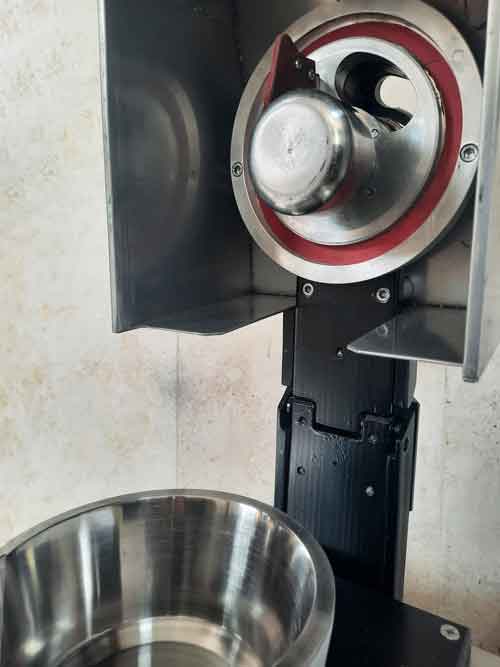

   Grinding principal of  Microclass 200  is based  on rotation of a mortar by Electric Servo Motor that is exposed under pressure of the pestle. This case excentrical rotating pressure on sample grains and mix , homogenize and grind it to micro powder.


pestle pressure is adjustable by rotation of special screw .
 Sample grains feed by scraper between mortar and pestle , then crash and mix under eccentric pressure .
Motor mill model Microclass 200 is suitable to prepare micro powder of minerals , cement , clinker , stones , drugs , soils , ceramics , coal , seeds , petrochemical's products , glass ,…
This materials can feed as pulp , wet , dry , throw a charging chamber with transparent  cover window.



 LABORATORY Mortar mill

LABORATORY Mortar mill

Model:  MICROCLASS-200

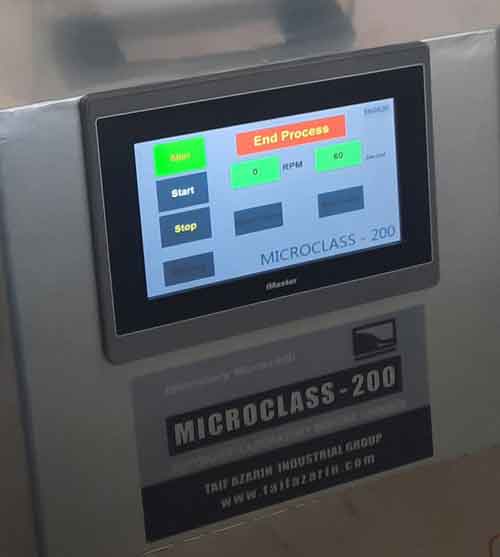

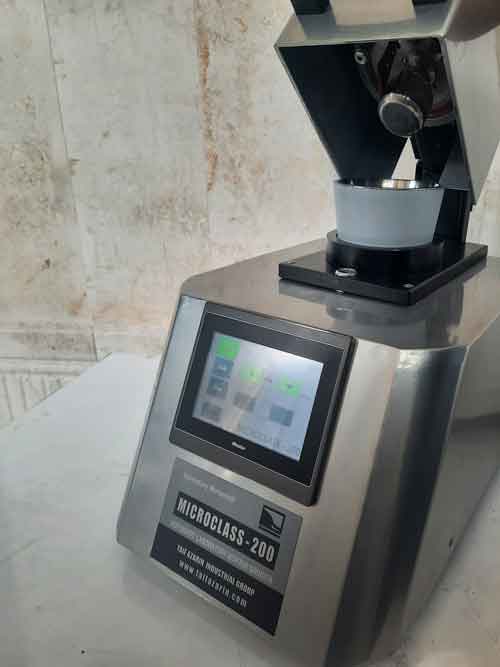

     Mortar rotation speed control between 10 – 110 Rpm by ± 1 RPM accuracy that combined by PLC, servomotor and 7 "HMI touch control monitor , otherwise the milling time can be adjustable  by HMI up to 5 hours , speed and remaining time continuously show on HMI display .

 LABORATORY Mortar mill

LABORATORY Mortar mill

Model:  MICROCLASS-200



 Automatic LABORATORY Mortar mill

LABORATORY Mortar mill

Model:  MICROCLASS-200


 Automatic Laboratory Mortar mill

LABORATORY Mortar mill

Model:  MICROCLASS-200




  Laboratory Mortar mill

LABORATORY Mortar mill

Model:  MICROCLASS-200

     Laboratory Mortar mill

LABORATORY Mortar mill

Model:  MICROCLASS-200




 Mortar mill

LABORATORY Mortar mill

Model:  MICROCLASS-200



 Mortarmill

LABORATORY Mortar mill

Model:  MICROCLASS-200

 Mortar mill

LABORATORY Mortar mill

Model:  MICROCLASS-200





Mortar mill

LABORATORY Mortar mill

Model:  MICROCLASS-200

Compare Technical data
Technical Data



Model: MICROCLASS- 200

Technical Data / Mortar mill

milling , mixing and grinding of material / produce micro powder

  Usage

  brittle , hard , semi hard , hard brittle materials

  Feed materials

 less than 8 mm

  Max feed size

 < 10 micron

  Product size
Max 200 ml

  Capacity

 adjustable 1- 10 kg

 Pestle pressure

 7 "  touch control HMI

 Control board and display

 programable PLC

 Control unit

 adjustable 10 - 110 RPM ,  ± 1 RPM accuracy

Mortar speed

 Adjustable 20 S - 5 H  /   ±1 S accuracy

 Time control

 220 V / 50 Hz , 60 Hz / 550 watt

   Power

 500 L × 420 W × 400  H

 Approx. dimension (mm)
45Kg Approx. weight
