Laboratory HAMMER MILL

Laboratory HAMMER MILL

Model : ISOMILL – 2
Laboratory HAMMER MILL
Model : ISOMILL – 2

Status: in stock
Quantity








Description

 Laboratory HAMMER MILL Model : ISOMILL – 2

Laboratory HAMMER MILL
Model :  ISOMILL – 2



Laboratory HAMMER MILL
Model :  ISOMILL – 2
Description

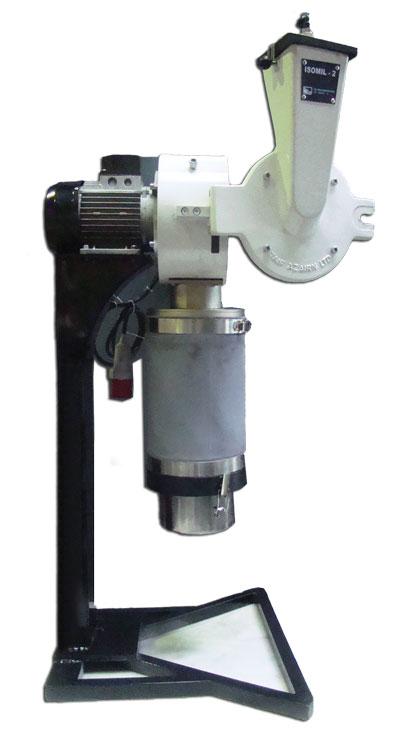

Laboratory ISOMILL-2 is a suitable device for fast breaking and milling all kinds of hard, semi-hard, and brittle minerals in laboratories and research centers. The devices can be used favorably in mining, rock, ceramic, pharmacy, cement and concrete colors, soil and glass, food, agricultural and biology laboratories.

 Laboratory HAMMER MILL Model : ISOMILL – 2

Laboratory HAMMER MILL
Model :  ISOMILL – 2








Compare Technical data
Technical Data
     TECHNICAL DATA / ISOMILL – 2
Electric motor 220 v / 380 v , 60 Hz
Power 1100 – 1500 W
Feed Material Brittle – Hard Brittle – Semi Hard – Semi Brittle
Feed Size < 20 mm
Product Size 70 micron – 2 mmadjustable
Optimum Capacity 20 Kg / h
Max capacity 50 Kg / h
Crushing system Batch , continuous / Dry

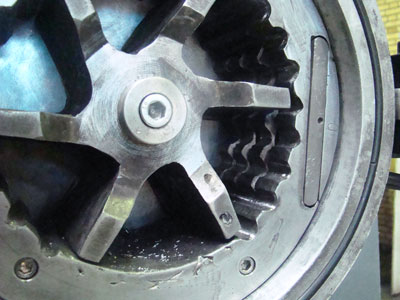

Crusher Rotor Chromium Steel / manganese Steel
Liner jaw Chromium Steel / MN Steel
Collector Box Stainless steel
Base Frame Steel

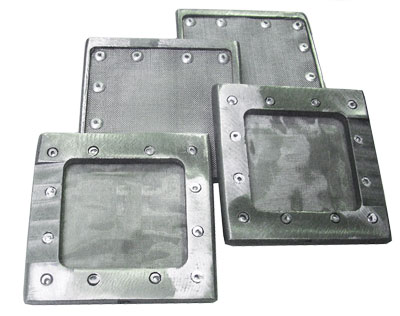

Filter Size 1 Micron
Control Board Electric / Electronic
Over Load Brake Electro Thermic
Approx. dimensions ( Cm) 110 H × 65 L × 60W
Approx. weight 75 Kg
