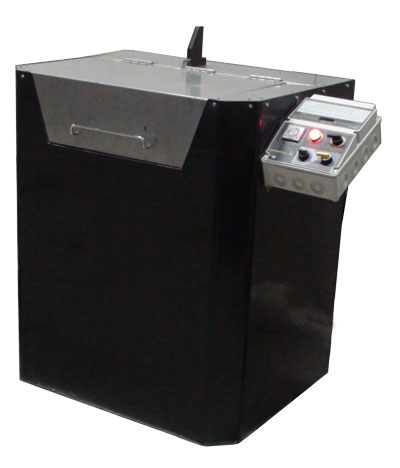

Laboratory DISK MILL

SUPERMILL – 4F

TECHNICAL DATA:

380 V - 50 / 60 Hz - 2100 w

Power

Max. 12 mm

Feed size

70 micron 200 mesh optimum.

Product size

Brittle hard - Semi hard - semi brittle

Feed material

1500 Hz normally

Vibrating frequency

50 – 100 g optimum each.

Capacity / batch

Chromium Steel - Tungsten Carbide / High Alumina

/ Agate/ Stainless Steel / Hardened Steel / HSSE

Milling Cup ( Optional )

Mechanical / Digital

Time display

120 L ´ 60 W ´ 100 H

Approx. Dimension ( Cm)

220 Kg

Approx. Weight
