Laboratory DISK MILL

Laboratory DISK MILL

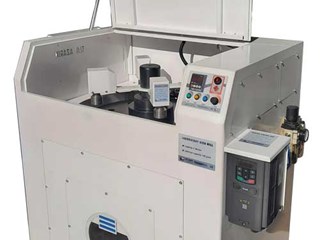

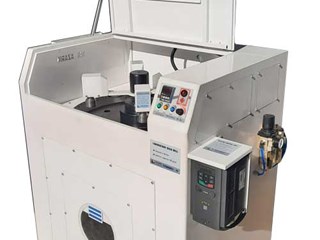

TECHNOMILL – 4D

Laboratory DISK MILL
Model: TECHNOMILL – 4D

Status: in stock
Quantity








Description

 Laboratory DISK MILL

Laboratory DISK MILL
Model: TECHNOMILL – 4D

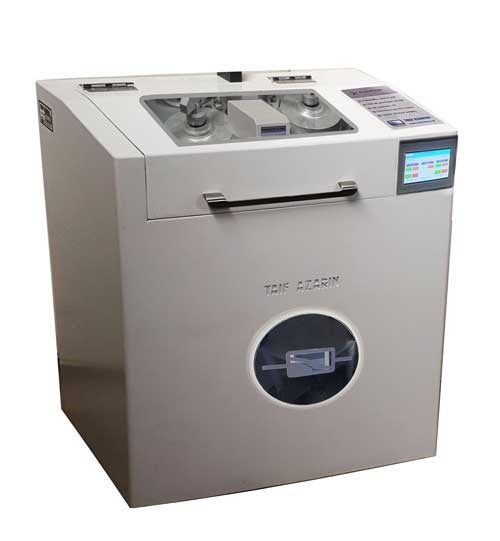

 DISK MILL

Laboratory DISK MILL
Model: TECHNOMILL – 4D



Mortar grinder mill

Laboratory DISK MILL
Model: TECHNOMILL – 4D






  DISK MILL



Laboratory DISK MILL
Model: TECHNOMILL – 4D



Compare Technical data
Technical Data



TECNOMILL – 6D

TECNOMILL – 4D

TECNOMILL – 3 D

Technical Data

3 phase , 380 V , 50 - 60 Hz

3 phase , 380 V , 50 - 60 Hz

3 phase , 380 V , 50 - 60 Hz

Electric Motor

5.5 Hp , 4000 W

4 Hp , 3000 W

3 Hp , 2200 W

Power

6 × 120 gr

4 × 120 gr

3 × 120 gr

Capacity (optimum)

Max 10 mm

Max 12 mm

Max 10 mm

Feed size

200 mesh / 70 micron

200 mesh / 70 micron

200 mesh / 70 micron

Product size

hard , brittle , semi brittle , hard brittle

hard , brittle , semi brittle , hard brittle

hard , brittle , semi brittle , hard brittle

Feed material

90 S

90 S

90 S

Milling time (optimum)

Resistant hardened Steel

Resistant hardened Steel

Resistant hardened Steel

Milling cup

Chromium Steel , Agate, Tungsten Carbide ,High Alumina

Chromium Steel , Agate, Tungsten Carbide ,High Alumina

Chromium Steel , Agate, Tungsten Carbide ,High Alumina

Optional Cup

Auto control 0 - 1500 pm

Auto control 0 - 1500 pm

Auto control 0 - 1500 pm

Vibration pulse

7touch screen LCD

7touch screen LCD

7touch screen LCD

Control board

Pneumatic /

Electronic multi system

Pneumatic /

Electronic multi system

Pneumatic /

Electronic multi system

Control system

Yes

Yes

Yes

Rotating Cup carrier plate

6 high speed pneumatic clamp

4 high speed pneumatic clamp

3 high speed pneumatic clamp

Clamp unit





120 L × 80 W × 100H

Approx. Dimensions (cm)

510 Kg

420 Kg

350 Kg

Approx. .Weight
