Laboratory ROLL Crusher

Laboratory ROLL Crusher

TEROL - 250



Laboratory ROLL Crusher

Model : TEROL -  250

Status: in stock
Quantity








Description

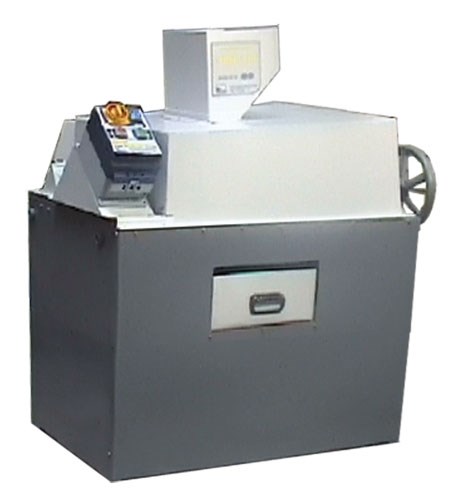

 Laboratory ROLL Crusher  Model : TEROL -  250

Laboratory ROLL Crusher

Model : TEROL -  250

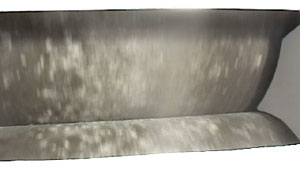

 Different models are designed and made of TEROL series. This device works based on the rotation of two cylinders of anti-wear alloy in the opposite directions to each other, while there is a little difference in rotation rate of each cylinder.



In TEROL series, fixed cylinder attaches to a very powerful spring system that, in the case of entering unusual pieces, cause rollers to go backward and the object be disposed. The distance between crusher aperture of cylinders is adjustable manually or by electrical system.

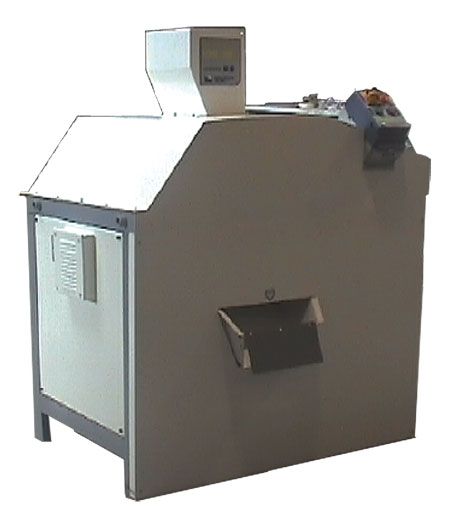

 Laboratory ROLL Crusher    Model : TEROL -  300

Laboratory ROLL Crusher

Model : TEROL -  300








Compare Technical data
Technical Data



Model

Terol 300

Terol 250

Terol 200

Discription

Electric Motor

2.2 KW / 380 V

1.5 KW / 380 V

1.1 KW / 380 V

Germany

ROLL Dia. L (mm)

300 × 350

250 × 300

200 × 250

Manganese/ chromium steel Steel shell/ hardened steel

ROLL Surface

Smooth / Toothed

Smooth / Toothed

Smooth

Max. feed Size

35mm

20mm

10mm

Product Size

Adjustable < 3 mm

Adjustable < 2 mm

Adjustable < 1 mm

Frame / bas

Steel

Steel

Steel

Control Board

Electric/Electronic

Electric

Electric

Over Load system

yes

yes

yes

Electro mechanical

Roll Shell / Brush

yes

yes

yes

Manganese Steel /Steel

Dimensions ( Cm )

800 W × 950 L × 1100 H

700 W × 900 L × 1000 H

600 W × 800 L × 900 H

Weight

300 kg

220 kg

180 kg
