Laboratory Cone Crusher

Laboratory Cone Crusher

TACER - 300



Laboratory Cone Crusher

Model : TACER - 300

Status: in stock
Quantity








Description

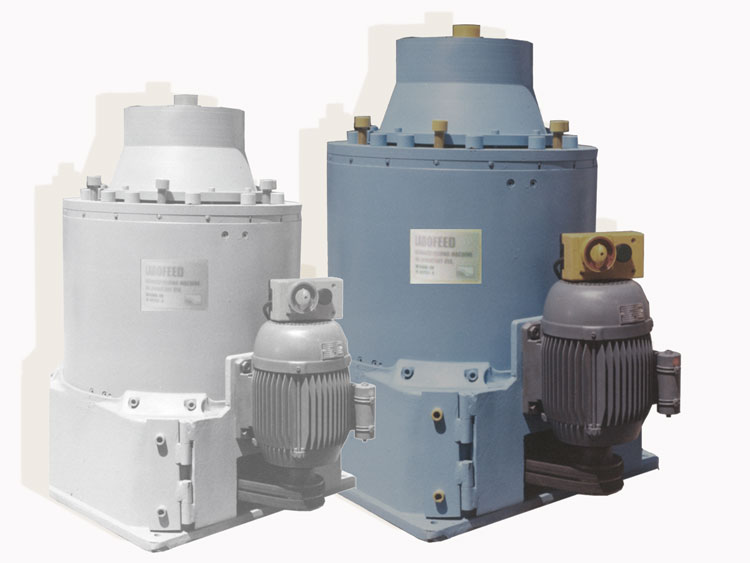

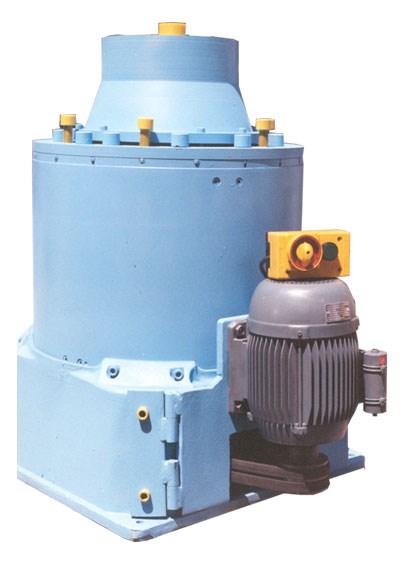

Laboratory Cone Crusher

Model : TACER - 300






TACER-300 is designed for breaking a variety of rocks, minerals, ceramics and similar brittle materials in laboratory scale.

Moving and fixed cones are the kind of standard step cones and allow material to be crushed in two stages.

For this reason, input load feeding with large dimension is possible





Compare Technical data
Technical Data



     TECHNICAL DATA / TACER- 300
Electric motor 220 V / 380 V – 50 , 60 Hz
Power 2 / 2 KW
Outside Cone ( step Cone ) 300 mm Dia.
Moving Cone ( step Cone ) 270 mm Dia.
Cone material MN steel
Feed Size MAX: 50 mm
Product Size 3 – 12 mm adjustable
Aperture Dia. 180 mm
Optimum Capacity Optimum Capacity
Eccentric Axis Speed 475 RPM
Lubricant system Automatic
Control panel ELECTRIC
Over Load Brake Thermic fuse
Approx. dimensions 810 W × 750 L × 650H
Approx. weight 220 Kg
