Laboratory Cutting Machine

Laboratory Cutting Machine

Model : CORIER - 230 S
Laboratory Cutting Machine
  Model : CORIER - 230 S

Status: in stock
Quantity








Description

Description:

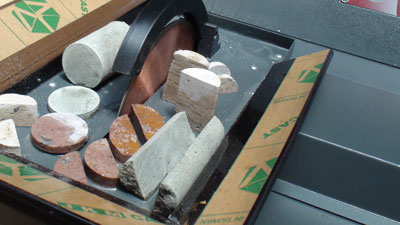

This machine is used in metallurgy and geology, mining, and ceramic laboratories and is made for fast cutting of metals , rock, mineral, ceramic and core samples. Different types of composite and diamond blades with 20, 23 and 25 cm diameters can be installed on the cutting system.



Laboratory Cutting Machine
 Model:  CORIER - 230 S



 Laboratory Cutting Machine   Model:   CORIER - 230 S

Laboratory Cutting Machine
 Model:  CORIER - 230 S

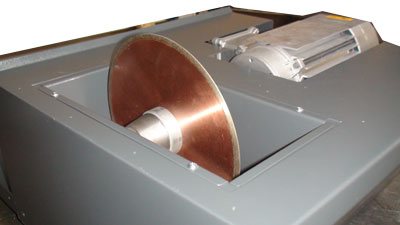

The most important feature of the cutting machine, CORIER series, is direct power technology. Due to this technology there is no need to straps, bearing, and other additional parts for power transfer, so it will prevent any power loss, vibration and noises. Corier 230S is made in two models: manual cutting and automatic cutting machine.

Laboratory Cutting Machine   Model:   CORIER - 230 S

Laboratory Cutting Machine
 Model:   CORIER - 230 S

   Laboratory Cutting Machine   Model:   CORIER - 230 S


 Laboratory Cutting Machine   Model:   CORIER - 230 S

                      Laboratory Cutting Machine
                     Model:  CORIER - 230 S

   Laboratory Cutting Machine   Model:   CORIER - 230 S

Compare Technical data
Technical Data
    TECHNICAL DATA / Corier – 230 S
Electric motor 220 V , 380 V - 50 Hz
Power 1500 – 2200 W
Cut off wheel Dia. 20 , 23 , 25 Cm
Power system Direct Power
Cutting table Liner : 0.1 mm Accuracy
Valves / Lubricant line Stainless steel / Pu
Lubricant tank 60 liter
Lubricant pump 220 V , 50 Hz , 90 W
Approx. dimension(Cm) 75 L× 5 W × 45 H
Approx. weight 75 Kg
