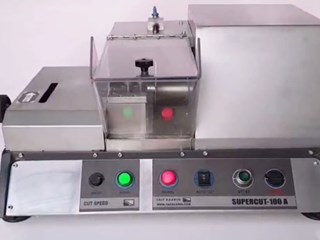

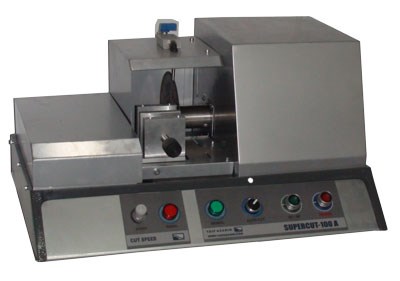

SUPERCUT – 100A Laboratory Cutting Machine Model : SUPERCUT-100A
Description:
For accurate and fast cut off small samples, a precise machine with high technology is needed. SUPERCUT – 100A established on power, speed and accuracy mechanism .
Laboratory Cutting Machine Model: SUPERCUT-100A
In this cut off machine, usage verity of thin blade such as diamond blade and composite blade up to 200 mm dia. is possible. SUPERCUT – 100A can used for cutting of Rocks, Minerals,Crystals,Ceramic, Alloy and Composite. The cutting process would be done manually, semi-automatic and automatic.
TECHNICAL DATA: SUPERCUT -100 / SUPERCUT -100A
ELECTRIC motor
220 v / 50 – 60 Hz
POWER
750W
Usage
For cut off all materials
Cut off wheel
150 – 200 mm
Cooling / Lubricant
Water / Lubricant spray
Sample size
Max. 80 mm
Base
Anti-corrosive alloy
Frame / cutting system
Stainless steel
Vacum sample holder
Optional
Automatic cutting system
LED Light
12 V Dc
Approx. diamention (Cm )
60 L × 35 W × 30 H
Approx. weight
75 Kg
