Description
Description

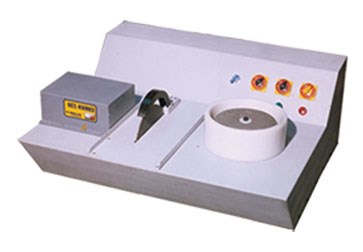

CORIER-2 is made for cutting the hard samples and grinding samples with high loading capacity. The system has two separate electro motors. Other specifications are similar to CORIER-2S.
UNIVERSAL / CUTTING & GRINDING MACHINE
Model : CORIER-2
Compare Technical data
Technical Data
|
TECHNICAL DATA / CORIER-2 , CORIER-2S
|
|
|
Electric motor
|
---
|
|
|
Grinding unit:
|
220 - 380 v , 50 Hz , 750 w
|
|
|
Cutting unit:
|
220 – 380 v , 50Hz , 1500w
|
|
|
Cut Off wheel:
|
diamond blade / carbide blade
|
|
|
Cut Off Dia (mm):
|
200 , 230 , 250
|
|
|
Lubricant system:
|
open / circulating
|
|
|
Lubricant tank / pump:
|
60 liters / 220 v , 60w
|
|
|
Grinding lapping disc:
|
silicon carbide / cast Iron (smooth) Grooving
|
|
|
Grinding / lapping disc Dia :
|
150 , 200 , 300 mm
|
|
|
Approx dimension (cm):
|
80 L× 65 w × 45 H
|
|
|
Approx weight:
|
110 Kg
|
