Description
Description

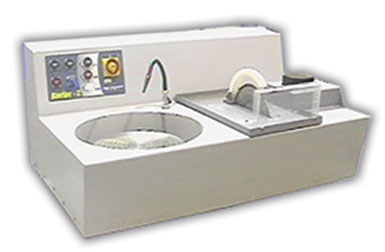

CORIER-2S is a dual use device in which both cutting and grinding systems are designed and embedded. The system has a cooling system and a common water outlet. its electric panel has a separate start/ stop button and also it has a separate electromotor for each unit.
UNIVERSAL / CUTTING & GRINDING MACHINE
Model : CORIER-2S
Grinding unit contains a groove and smooth alloy disc with 30 cm diameter and the blade in the cutting unit is useable up to 250 mm diameter.
Compare Technical data
Technical Data
|
TECHNICAL DATA / CORIER-2 , CORIER-2S
|
|
|
Electric motor
|
---
|
|
|
Grinding unit:
|
220 - 380 v , 50 Hz , 750 w
|
|
|
Cutting unit:
|
220 – 380 v , 50Hz , 1500w
|
|
|
Cut Off wheel:
|
diamond blade / carbide blade
|
|
|
Cut Off Dia (mm):
|
200 , 230 , 250
|
|
|
Lubricant system:
|
open / circulating
|
|
|
Lubricant tank / pump:
|
60 liters / 220 v , 60w
|
|
|
Grinding lapping disc:
|
silicon carbide / cast Iron (smooth) Grooving
|
|
|
Grinding / lapping disc Dia :
|
150 , 200 , 300 mm
|
|
|
Approx dimension (cm):
|
80 L× 65 w × 45 H
|
|
|
Approx weight:
|
110 Kg
|
